Lead glass window

Lead glass window for isotope work stations

• Optimal view at the working surface through the window
• For isotope work stations with a minimum height of 300 mm
• The 30 & 50 mm lead Eq. have a base plate for stability

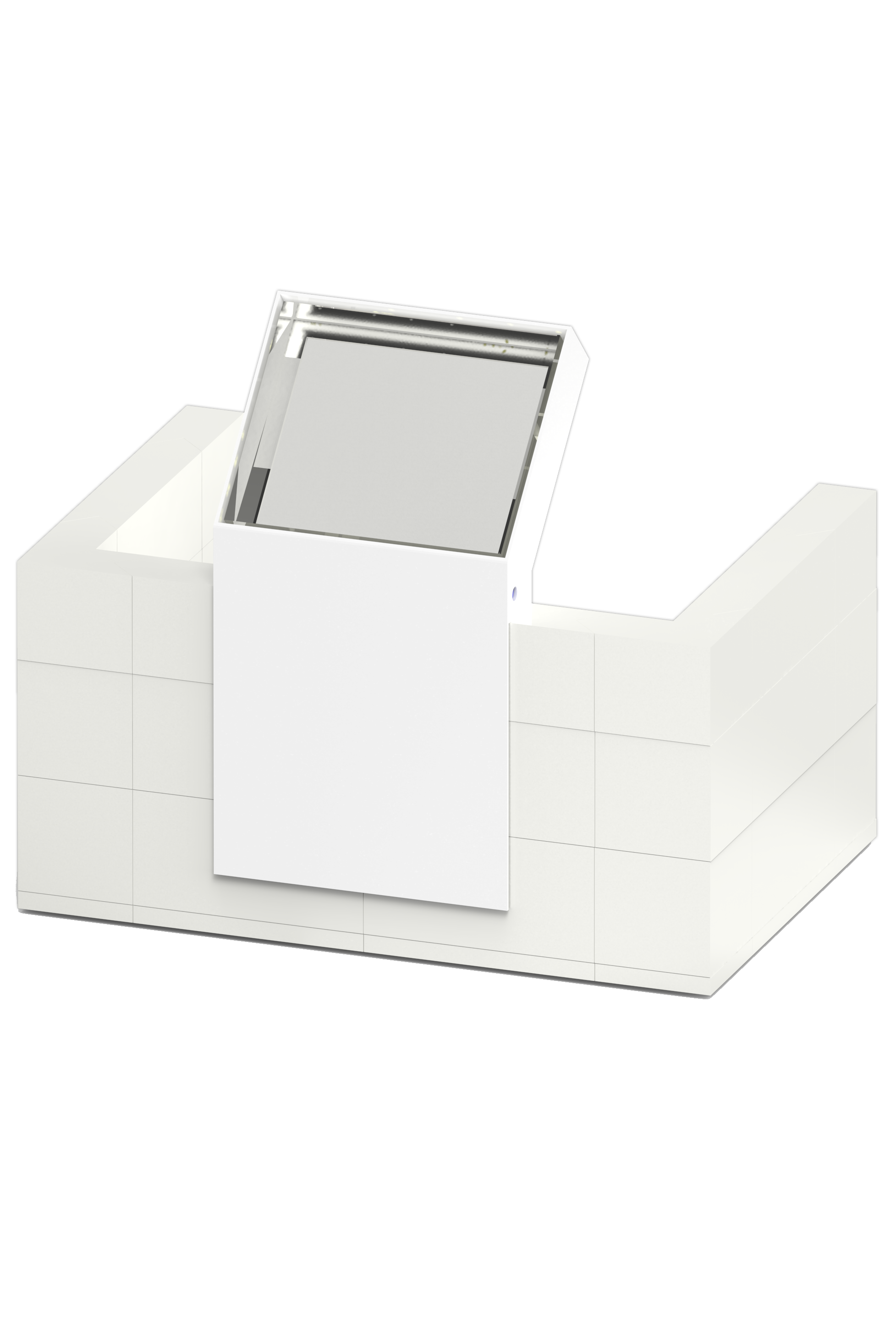

Lead glass window for isotope work stations
The lead glass comes mounted in a steel frame finished oyster white (RAL 1013). The isotope work station height must be at least 300 mm to fit the lead glass frame. The dimensions of the lead glass are 240*210 mm (W*H). The window is mounted at an angle of 45˚ for an optimal view on the work area. Upon request a special model lead glass is available with 50 mm lead equivalent. Due to the weight, the frame of this model also includes a bottom plate.

Model VG-BLG-5
Lead equivalent 5 mm, density 5,2 g/cm3, weight is ± 13 kg

Model VG-BLG-10
Lead equivalent 10 mm, density 5,2 g/cm3, weight is ± 17 kg

Model VG-BLG-20
Lead equivalent 20 mm, density 3,6 g/cm3, weight is ± 23 kg

Model VG-BLG-30
Lead equivalent 30 mm, density 5,2 g/cm3, weight is ± 50 kg
