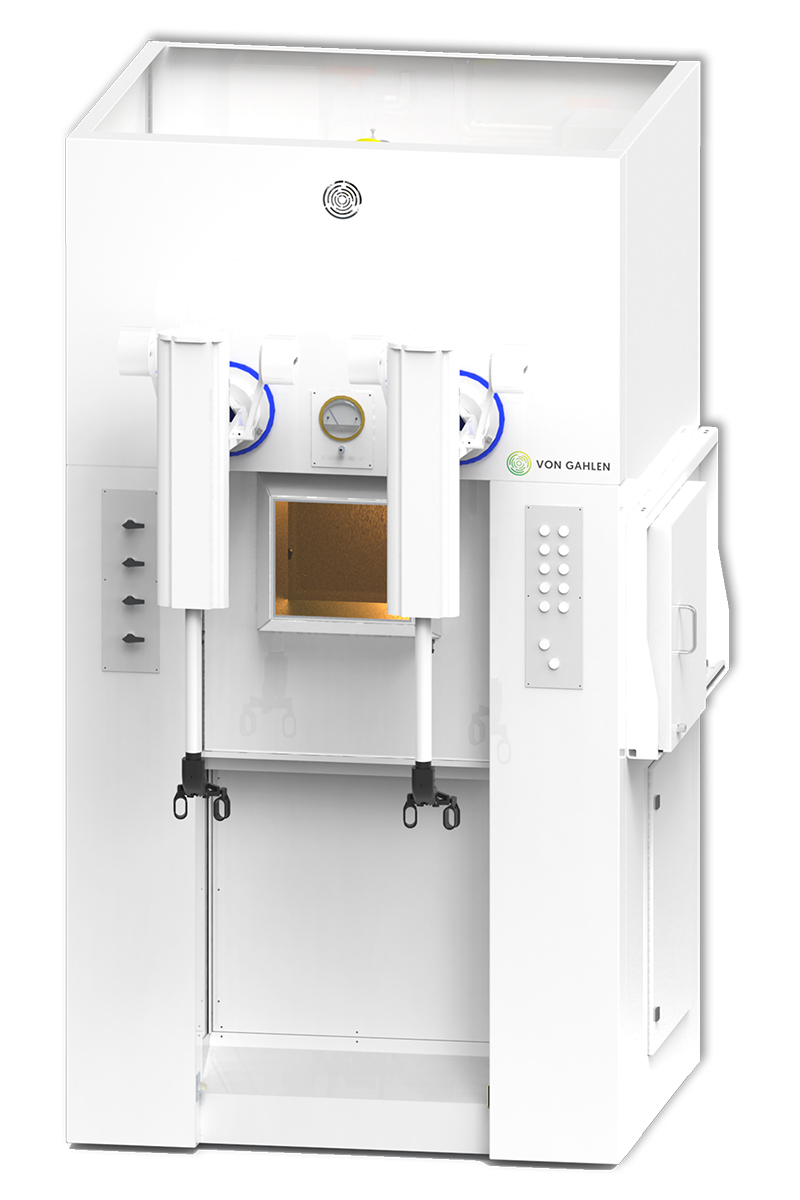

Modular hot cell

• Lead glass window
• Manipulators
• Inner, air-tight door with gloves
• Vertical door

The modular hot cell (MHC) is very versatile. Over 50 years of shielding design experience have led to a customizable design that can meet many research and manufacturing requirements while maintaining compliance with local standards. The MHC is engineered and constructed for continuous protection and reliability.

The MHC features a vertical, motor-driven lead-shielded front door and an airtight, hinged acrylic inner door. The main compartment is shielded with 3-inch or 4-inch lead on all sides. The internal stainless-steel box has rounded corners for ease of cleaning and decontamination. The MHC is prepared to integrate various brands of telemanipulators.

The design of this hot cell allows for several additional features, such as a product retrieval cabinet (PRC), an Unshielded Process Cabinet (UPC), or shielded storage for liquid or solid waste collection. This hot cell can be configured with various hot cell connections and can be seamlessly integrated into a clean room.

Many options are available, such as a charcoal filter for exhausts and basic or extended gas connections.

This hot cell is available at two heights and two different shielding thicknesses.
